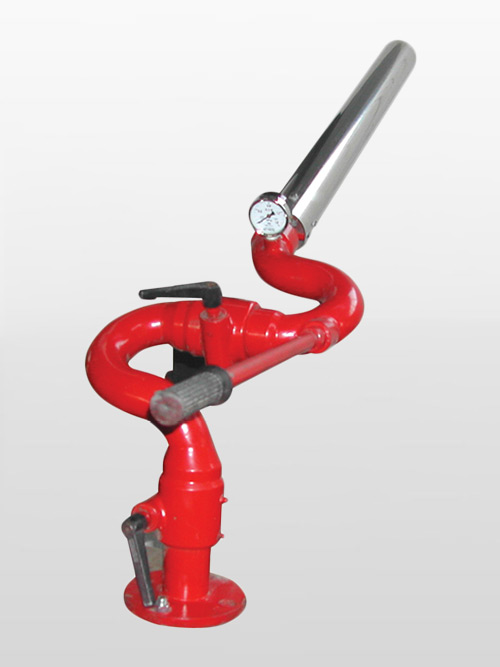

Monitor

$100.00

100 in stock

Monitor

Type: PP24C / PP32C
Service Pressure: 0.5~1.0 MPa
Max Service Pressure: 1.0 MPa
Spray Capacity: Mixed Liquids 24L/S, Water 24L/S, Mixed Liquids32L/S, Water 32L/S
Range: ≥40m ≥45m
Horizontal Rotary: ≥ ±180°
Max Angle of Elevation: ≥ ±70°
Max Angle of Depression: ≤ -60°
Allowable Error of Discharge Capacity: ±8%
Foaming Times (at 20℃): ≥6
25%Discharge Time (at 20℃): ≥2.5min
Effluent capacity: 40T/h(PPC24) 50T/h(PPC32)
Connection Flang: DN50(PP24C) DN65(PP32C)

100 in stock

SKU: PP24C / PP32C Categories: ,

Description

Monitor

Type: PP24C / PP32C
Service Pressure: 0.5~1.0 MPa
Max Service Pressure: 1.0 MPa
Spray Capacity: Mixed Liquids 24L/S, Water 24L/S, Mixed Liquids32L/S, Water 32L/S
Range: ≥40m ≥45m
Horizontal Rotary: ≥ ±180°
Max Angle of Elevation: ≥ ±70°
Max Angle of Depression: ≤ -60°
Allowable Error of Discharge Capacity: ±8%
Foaming Times (at 20℃): ≥6
25%Discharge Time (at 20℃): ≥2.5min
Effluent capacity: 40T/h(PPC24) 50T/h(PPC32)
Connection Flang: DN50(PP24C) DN65(PP32C)

Additional information

Weight 1.5 kg
